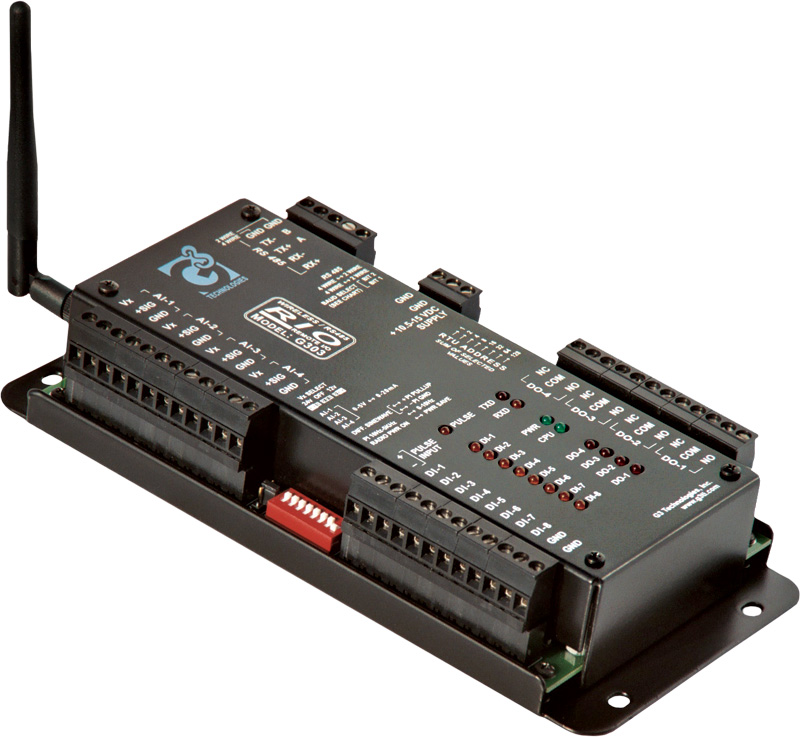

Industrial Remote I/O – Model G303

The Model G303 RIO (Remote I/O) is a robust, economical solution for local I/O expansion, or Wireless and/or RS485 remote I/O requirements in SCADA and Process Control applications.

In addition to its RS485 data port, it is available with an integrated spread-spectrum radio for high performance Wireless data communications.  And with the use of the integrated SS radio, the RS485 port can be used to add additional I/O or other Modbus devices to the Wireless system.  Other communication options are also available.

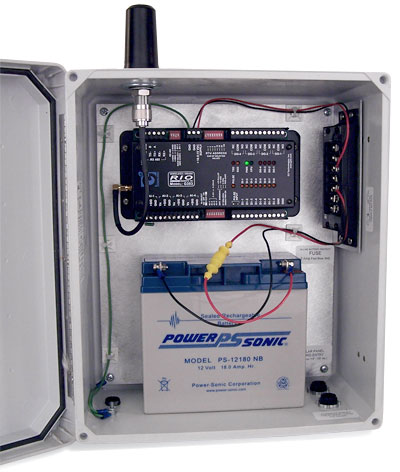

The G303 packs a powerful array of features not common in its price range.  Features include a Class I, Div 2 certification, rugged enclosure, very low power consumption, self-resetting fuses, LED annunciation, 24V transducer power source, precision A/D conversion, configurable meter input, flow rate and totalizer registers, industrial temperature rating, transient protection all the way around, 10 amp form C relay contacts, pluggable wire terminals, etc.  I/O includes 4 Analog Inputs, 1 Meter Input, 8 Digital Inputs and 4 Digital (relay) Outputs. See pdf data sheet for details, and call G3 Technologies for pricing.

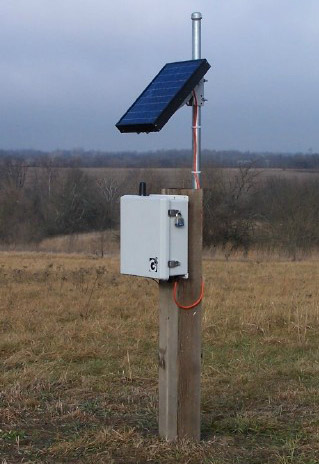

The G303 is a very versatile unit, suitable for SOLAR powered applications, and a multitude of Wireless I/O applications.  It has all the I/O needed for most pump site or well-head automation.
